[2-Pack] Impact Grade Socket Adapter Set, 3" Extension Bit With Holder | 3-Piece 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-101X2)

[2-Pack] Impact Grade Socket Adapter Set, 3" Extension Bit With Holder | 3-Piece 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-101X2)

Sale price  $18.97 Regular price  $21.97
Skip to product information
[2-Pack] Impact Grade Socket Adapter Set, 3" Extension Bit With Holder | 3-Piece 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-101X2)

LX-101X2

[2-Pack] Impact Grade Socket Adapter Set, 3" Extension Bit With Holder | 3-Piece 1/4", 3/8", and 1/2" Drive, Adapt Your Power Drill To High Torque Impact Wrench (LX-101X2)

Sale price  $18.97 Regular price  $21.97
UPC
840025248137

Overview

The LX-101X2 is a two-pack of LX-101 3-inch impact socket adapter sets for automotive, maintenance and DIY work. Each three-piece set connects a compatible drill or hex bit holder to 1/4, 3/8 and 1/2-inch square-drive sockets.

Key Advantages

Fit The Connection

Three Short Adapters, Three Socket Drives

Two three-piece sets connect a compatible drill or hex bit holder to sockets. Each set provides 1/4, 3/8 and 1/2-inch square outputs; check the input connection and working clearance.

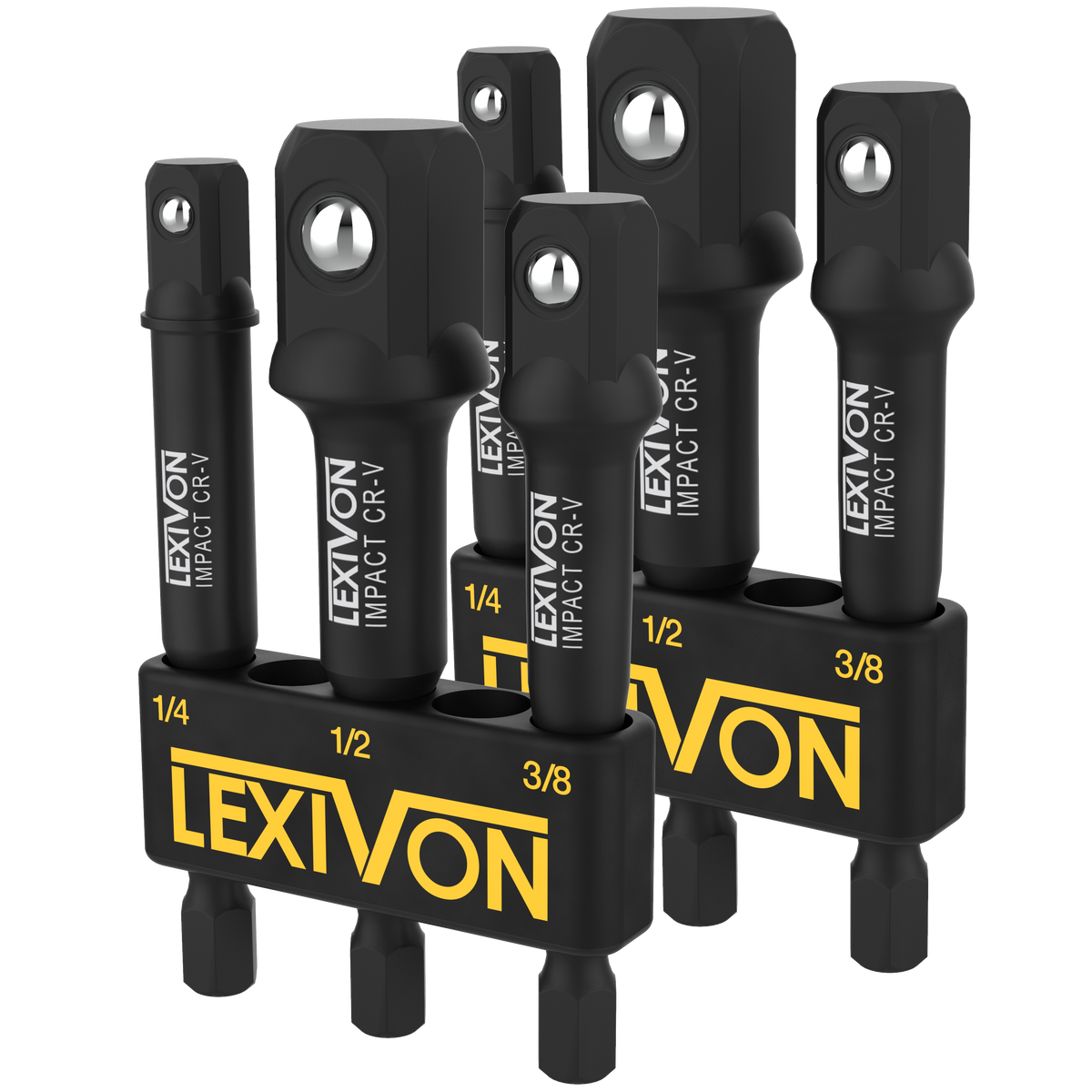

LX-101X2 two sets of three short adapters in two holders
Construction

Impact Grade Steel And Coating

Heat-treated chrome vanadium alloy steel. Black phosphate treatment is listed for corrosion resistance. Keep adapter use within 540 in-lb (45 ft-lb).

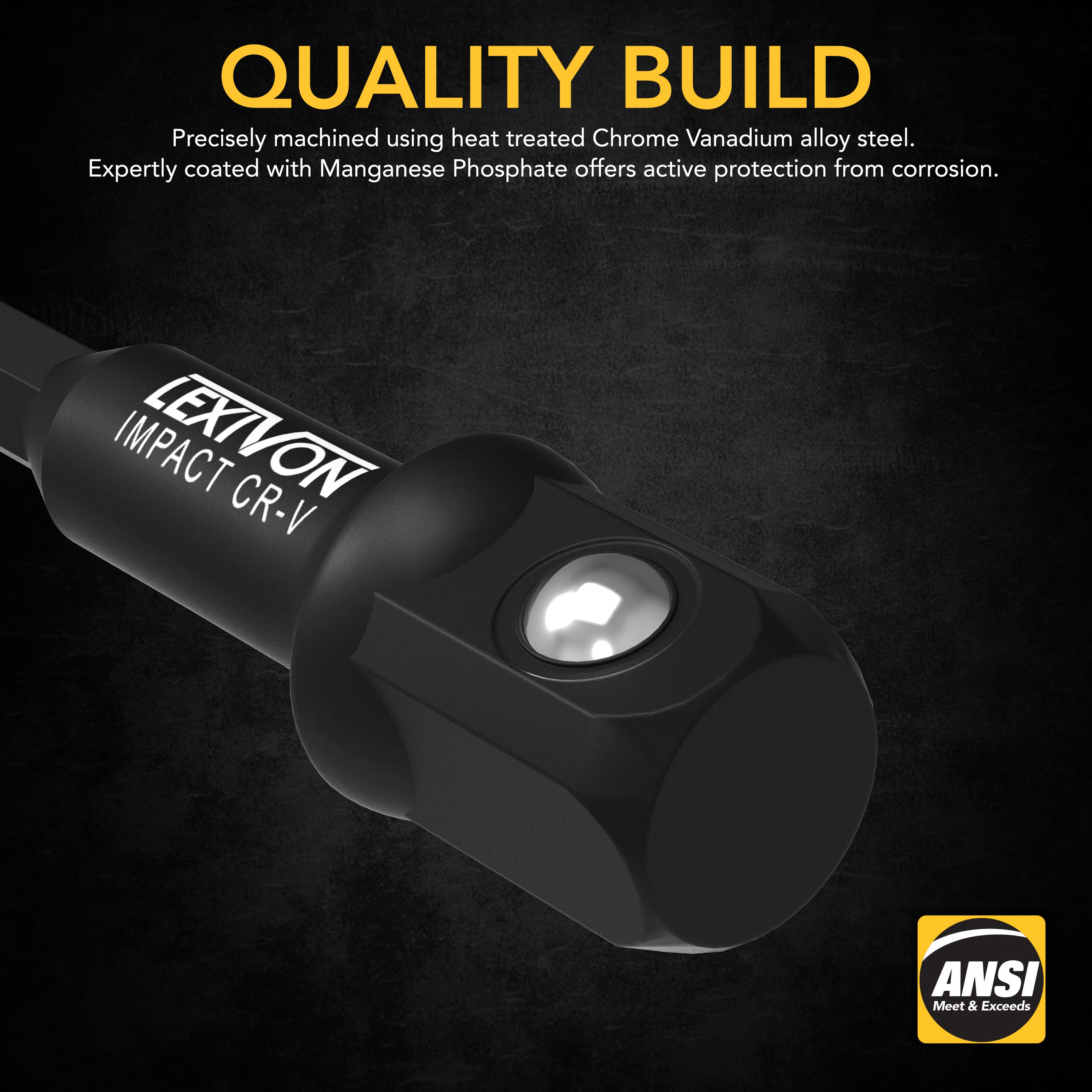

LX-101X2 black impact adapter drive end and detent ball
In The Box

Check The Supplied Kit

Two three-piece 3-inch adapter sets, six adapters total: two each of 1/4, 3/8 and 1/2-inch square drives, with two organizer holders.

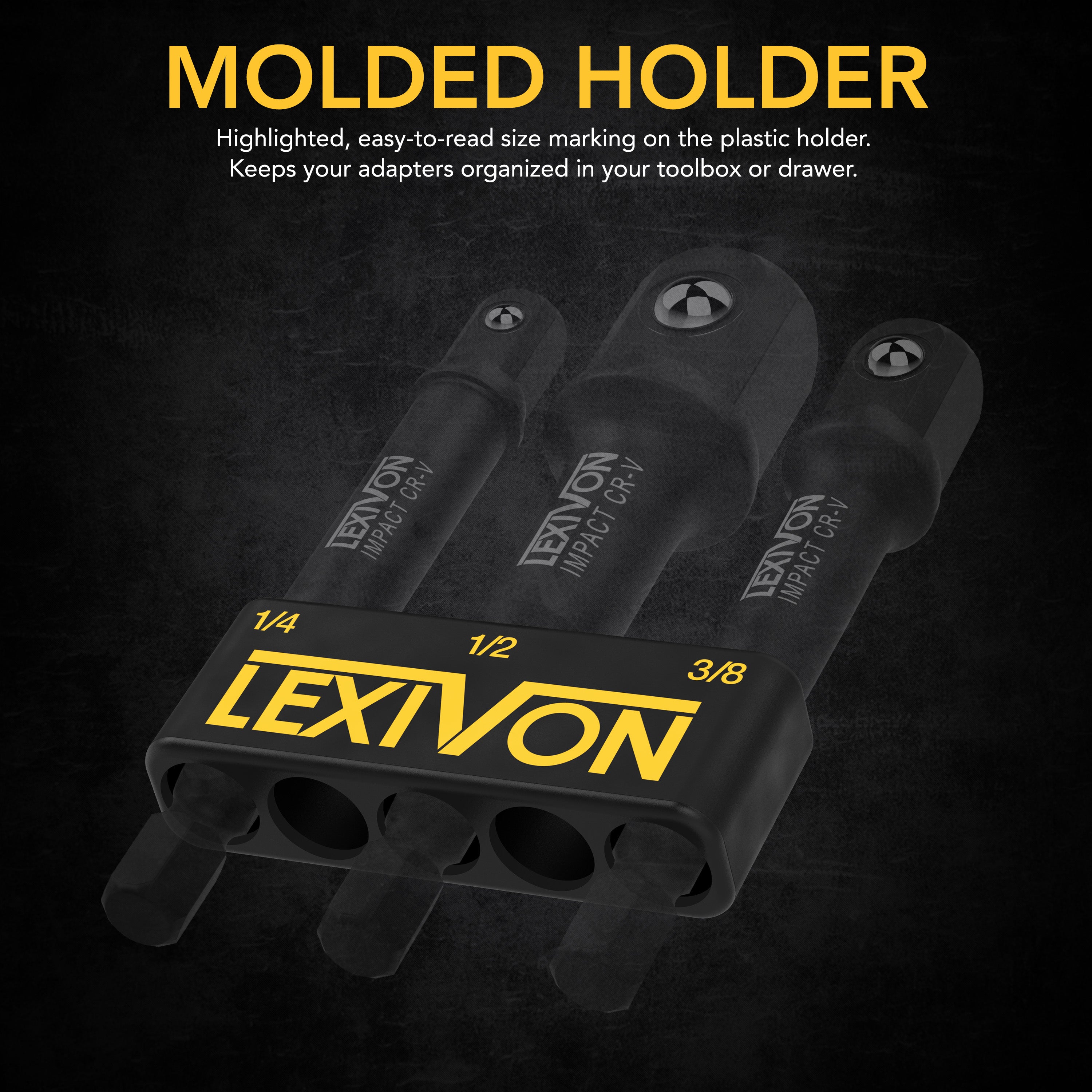

LX-101X2 supplied adapters and organizer

Will it fit the job?

Choose by connection size, socket opening, reach and working clearance.

Job or attachmentWorksWhat to check
1/4-inch hex holders and standard drill chucksYes, when the shank fitsUse the 1/4-inch hex shank, then match the square output to the socket.
Automotive and maintenance workApplication dependentMatch the socket opening, working space and tool capacity to the fastener.
Other drive sizesNo assumed direct fitCheck the input and output drive separately before buying.
Unidentified vehicle or tool modelNot a verified fit guaranteeConfirm the required fastener size and actual tool connection.
Unspecified high-torque workWithin the recommended adapter torqueStay within 540 in-lb (45 ft-lb); check actual tool output and socket fit.

Tech Specs

Drive connection
1/4-inch hex shank; 1/4, 3/8 and 1/2-inch square outputs
Pack quantity
Two three-piece sets; six adapters total
Nominal adapter length
3 inches
Material
Heat-treated chrome vanadium alloy steel
Finish
Black phosphate
Included items
Two three-piece 3-inch adapter sets, six adapters total: two each of 1/4, 3/8 and 1/2-inch square drives, with two organizer holders.
Country of origin
Taiwan
Impact designation
Impact grade; conservative adapter use torque 540 in-lb
Warranty
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration.
Commercial and industrial coverage
Commercial: 12 months, cannot be extended; industrial: not covered
Conservative adapter use torque
540 in-lb (45 ft-lb); no higher per-output limit established

Questions

What does the 3-inch LX-101 connect?

Its short adapters link a 1/4-inch hex holder or drill chuck to sockets. The three square outputs are 1/4, 3/8 and 1/2 inch.

Is LX-101 the short set for a drill and existing sockets?

Yes. This set supplies the nominal 3-inch length in all three square-drive sizes; check whether that reach clears your driver body and surrounding parts.

Can I put a 10 mm, 1/4-inch drive socket on it?

Use the adapter marked 1/4 inch square drive for that socket. The 10 mm opening fits the fastener; it is separate from the socket drive connection.

Does the set attach directly to a square-drive impact gun?

The input on LX-101 is a hex shank, not a female square. Select a square-input accessory for a square-drive gun.

Which socket connections does the holder organize?

It holds one adapter for each of the 1/4, 3/8 and 1/2-inch square drives. All three adapters have the same 1/4-inch hex input.

Are both sets the same drive sizes and length?

Yes. Both sets contain nominal 3-inch adapters with 1/4, 3/8 and 1/2-inch square drives. The two-pack provides two of each drive size.

How does LX-101X2 compare with LX-101?

LX-101X2 supplies two LX-101 three-piece sets, six adapters total. LX-101 supplies one three-piece set. Both use nominal 3-inch adapters with a 1/4-inch hex shank and 1/4, 3/8 and 1/2-inch square outputs.

Will I need to supply the sockets and drill?

The two-pack lists six adapters and two holders. Sockets and a power tool are not listed as included.
