Twelve Bits For Your Bicycle Fasteners
LX-191 adds 12 hex and Torx bits, an adapter and a 3-inch extension to a 2-26 Nm dual-direction wrench. Match the bit and torque to each component.
- 12 bitsincluded
- 2-26 Nmtorque range
- 3 inchesextension

LX-191 is a 15-piece bicycle torque-tool kit with a 1/4-inch drive, dual-direction 2-26 Nm wrench. It adds eight hex bits, four Torx bits, an adapter and a 3-inch extension for component fasteners that match those profiles and torque limits, stored in a zippered case.
LX-191 adds 12 hex and Torx bits, an adapter and a 3-inch extension to a 2-26 Nm dual-direction wrench. Match the bit and torque to each component.

The wrench is 8.7 inches long with 0.2 Nm micrometer increments. Lower the collar to adjust, raise it to lock and stop at the first click.

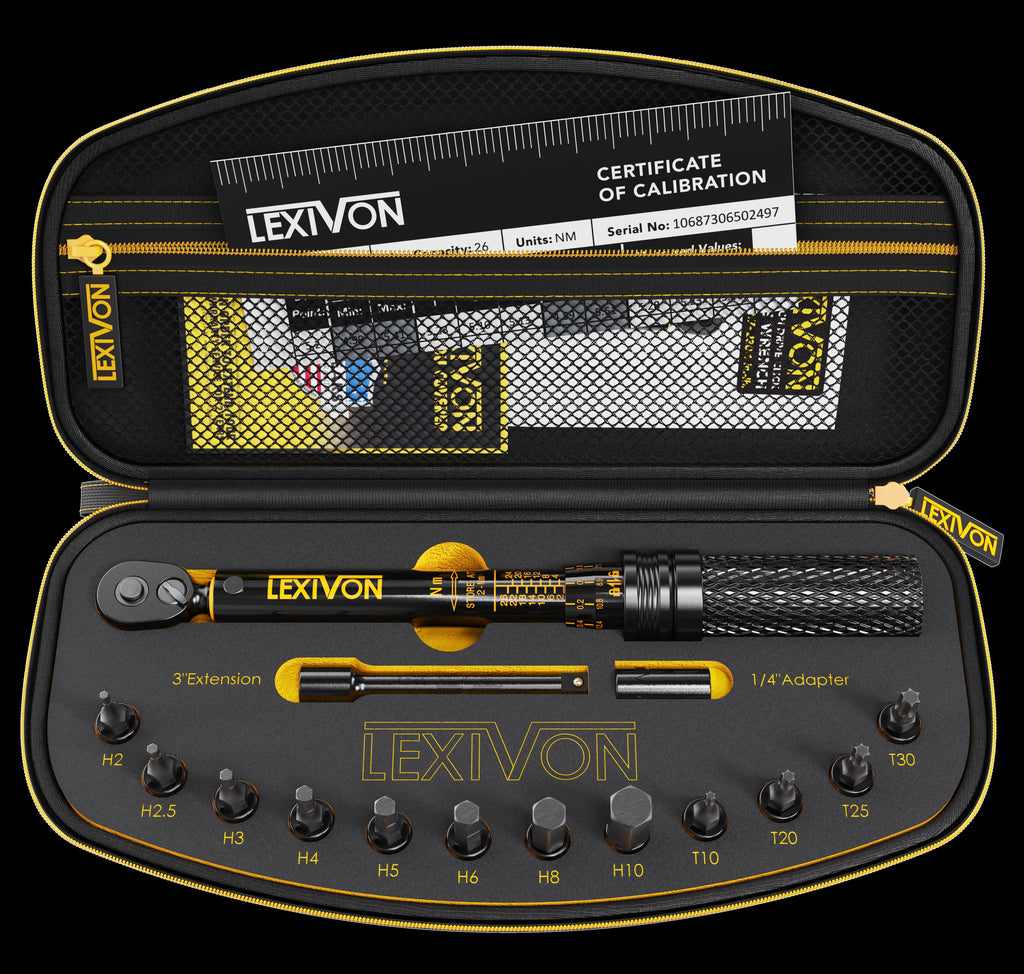

LX-191 includes a wrench, 3-inch extension, square-drive-to-hex bit adapter and 12 bit sockets, with a zippered case, manual and calibration certificate.

Match the required torque, measurement direction, square drive and working space to the equipment specification.
| Job or attachment | Works | What to check |
|---|---|---|
| Bicycle fasteners matching included hex or Torx bits | Yes, when specification fits | Clockwise and counterclockwise tightening within 2-26 Nm; follow the equipment maker's torque value. |
| 1/4-inch drive sockets | Yes | Match the socket opening to the fastener and allow space for the wrench. |
| 3/8-inch drive sockets | No direct fit | Match the square drive rather than the socket opening size. |
| Fasteners below 2 Nm | No | Use a lower-range torque tool. |
| Fasteners above 26 Nm | No | Use a higher-range torque tool. |
| Left-hand threaded fasteners | Yes, within range | Counterclockwise accuracy claim is +/-6%. |
| Stuck fasteners and added leverage | No | Do not use as a breaker bar or add leverage devices. |
LX-191 supplies eight hex sizes, H2, H2.5, H3, H4, H5, H6, H8 and H10, and four Torx sizes, , , and . Compare the actual bolt profiles with that inventory; it does not cover every bicycle fastener.
Use LX-191 for disc-brake assembly only when the component instructions call for a matching included bit and torque within 2-26 Nm. Follow the approved tightening procedure for your brake model.
The zippered case and included bits provide a portable LX-191 kit for suitable 2-26 Nm tasks. Check the tools your own bicycle needs before travelling, and confirm any airline restrictions separately.
No. The hex inventory is H2, H2.5, H3, H4, H5, H6, H8 and H10. Choose the size that fully seats in the fastener instead of using the nearest-looking bit.
Lexivon has stated that replacement parts can only be shipped within the United States. Check current shipping options and availability for the particular bit or adapter before ordering; do not assume overseas delivery or that every accessory is stocked.
The wrench in LX-191 measures torque clockwise and counterclockwise. Stay within 2-26 Nm, select the thread's tightening direction and note the different accuracy claims: +/-4% clockwise and +/-6% counterclockwise.
252 in-lb exceeds LX-191's upper limit of 230.1 in-lb (26 Nm). Use another instrument whose rated range includes that specification.
LX-191 starts at 2 Nm. A fastener whose maker requires less cannot be measured within this wrench's range. Having the right bit in the case does not remove that lower limit.
No. The Nm micrometer step is 0.2 Nm, approximately 1.8 in-lb. Use the intended scale and setting procedure rather than substituting a whole-number conversion.
The 72-tooth specification describes the LX-191 wrench's ratchet mechanism. Its measuring interval remains 2-26 Nm, irrespective of tooth count or which of the 12 bits you install.
Do not use the LX-191 measuring wrench to free a seized or over-range bolt. Use an appropriate removal tool first, then reserve this wrench for tightening within 2-26 Nm.
Low-torque LX-191 clicks may be subtle and felt as an impulse. Learn the signal on a non-critical application; stop and seek assessment if feedback is absent or changes.
Both have 1/4-inch drive, dual-direction 2-26 Nm wrenches. LX-191 adds 12 bit sockets, an adapter and a 3-inch extension in its 15-piece tool count; LX-190 comes with the wrench, case and certificate.
The 15-piece tool count includes one wrench, one 3-inch extension, one square-drive-to-hex adapter and 12 bit sockets. The zippered case, operator manual and calibration certificate are also supplied, but are not additional tools in that count.
LX-191 includes a 3-inch extension and square-drive-to-hex bit adapter. Minor play at the connections can be normal if the fit is secure and does not slip under light hand pressure. Stop and ask Lexivon to review a loose or slipping connection.
LX-191 has an alloy-steel ratchet and measures torque in both directions. Its accuracy claims are +/-4% clockwise and +/-6% counterclockwise within 2-26 Nm.
The included certificate records the actual calibration date, without an expiration date. Lexivon can supply a copy of the existing certificate, but cannot issue a newer calibration date without another calibration process. Confirm any workplace date requirement before ordering.
12 months standard; 24 months when you register online within 90 days of purchase. Commercial use stays at 12 months and industrial use is excluded; coverage concerns defects, not general wear.
On the LX-191 wrench, the top micrometer row is Nm. Lower the sliding collar, combine body and 0.2 Nm micrometer readings, then raise the collar to retain the chosen setting before applying the bit to the fastener.
If LX-191 operation no longer follows the selected setting, stop and contact Lexivon. Changing the handle position repeatedly does not establish that the measurement fault has cleared.
Stop the current LX-191 job and check the locked setting and use a slow pull. Learn to feel the impulse at low torque, but have persistent or changed feedback assessed instead of tightening a bicycle part farther to search for a sound.
Set the LX-191 wrench to 2 Nm with micrometer zero aligned before storing the kit. Keep the tool and attachments dry, and do not turn below the marked minimum just because the kit will be unused for a trip.
Wipe the wrench with a dry, lint-free cloth and avoid immersion or liquid cleaner. Do not apply a general bicycle-parts washing routine to LX-191's precision mechanism; follow appropriate care for the separate accessories.
Lexivon does not provide calibration services or recommend self-calibration. Use a laboratory you or your employer trust. Expected accuracy is up to 5,000 clicks, about two years, with low-setting storage in an appropriate environment. Recalibration, misuse and normal wear are excluded from defect coverage.
