2 in 1 Digital Laser Tape Measure | 130ft/40m Laser Distance Meter Display On Backlit LCD Screen With 16ft/5m AutoLock Measuring Tape | Ft/Inch/Fractions/M/mm(LX-201)

2 in 1 Digital Laser Tape Measure | 130ft/40m Laser Distance Meter Display On Backlit LCD Screen With 16ft/5m AutoLock Measuring Tape | Ft/Inch/Fractions/M/mm(LX-201)

Sale price  $71.97 Regular price  $83.97
Skip to product information
2 in 1 Digital Laser Tape Measure | 130ft/40m Laser Distance Meter Display On Backlit LCD Screen With 16ft/5m AutoLock Measuring Tape | Ft/Inch/Fractions/M/mm(LX-201)

LX-201

2 in 1 Digital Laser Tape Measure | 130ft/40m Laser Distance Meter Display On Backlit LCD Screen With 16ft/5m AutoLock Measuring Tape | Ft/Inch/Fractions/M/mm(LX-201)

Sale price  $71.97 Regular price  $83.97
UPC
840025201446

Overview

LX-201 combines a laser distance meter rated up to 130 ft / 40 m with a 16 ft / 5 m AutoLock tape. Use the backlit LCD for laser distances and the printed blade for shorter contact measurements.

Key Advantages

Two measuring methods

Laser Distance And Contact Tape

Read laser distances up to 130 ft / 40 m on the backlit LCD, or use the 16 ft / 5 m AutoLock blade for short contact measurements.

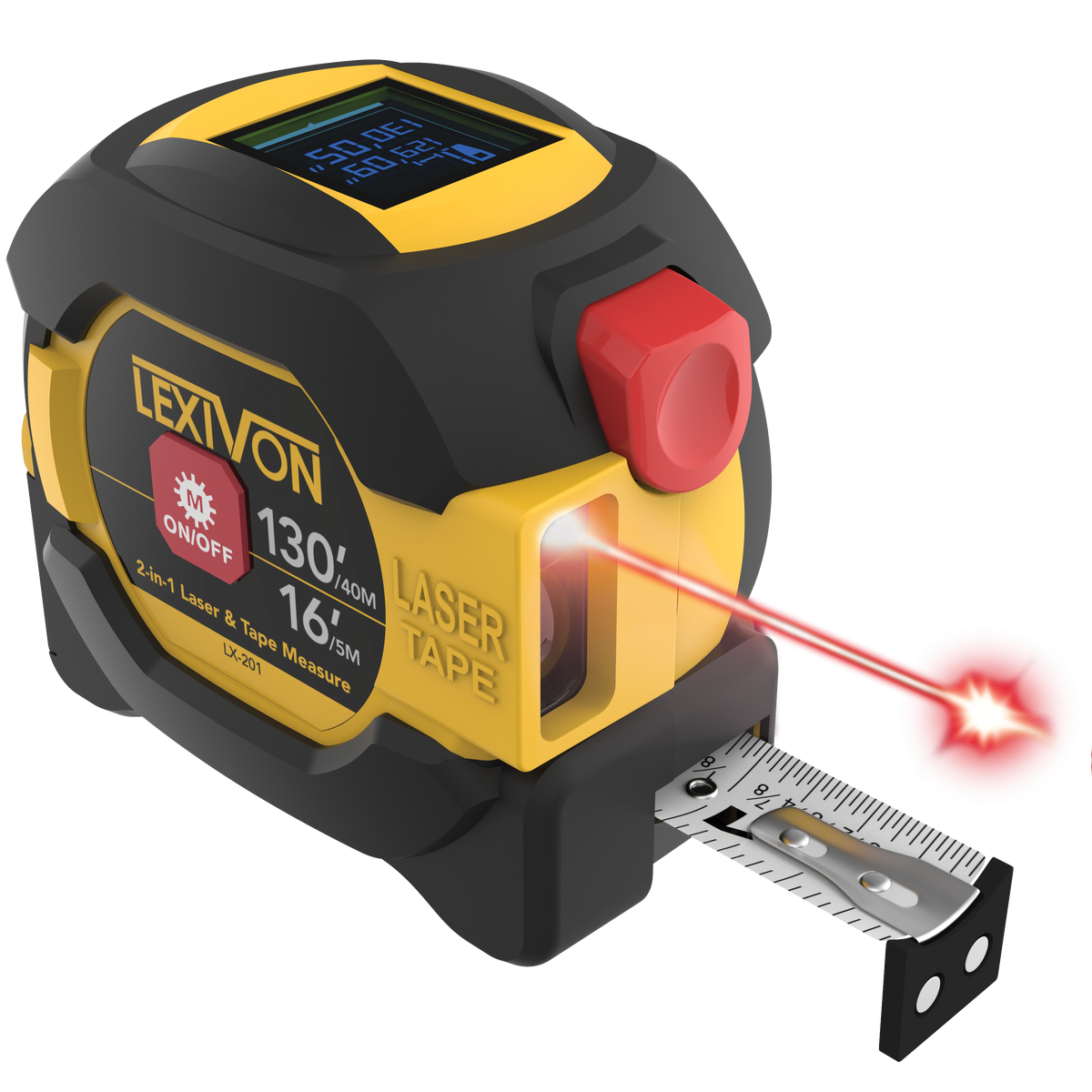

LX-201 laser and AutoLock tape measure with LCD, laser aperture and extended hook
Defined reference

Measure From The Back Of The Case

The default laser reference is the rear of the case. Check that starting edge before taking a reading; unit conversion changes the display units, not the reference.

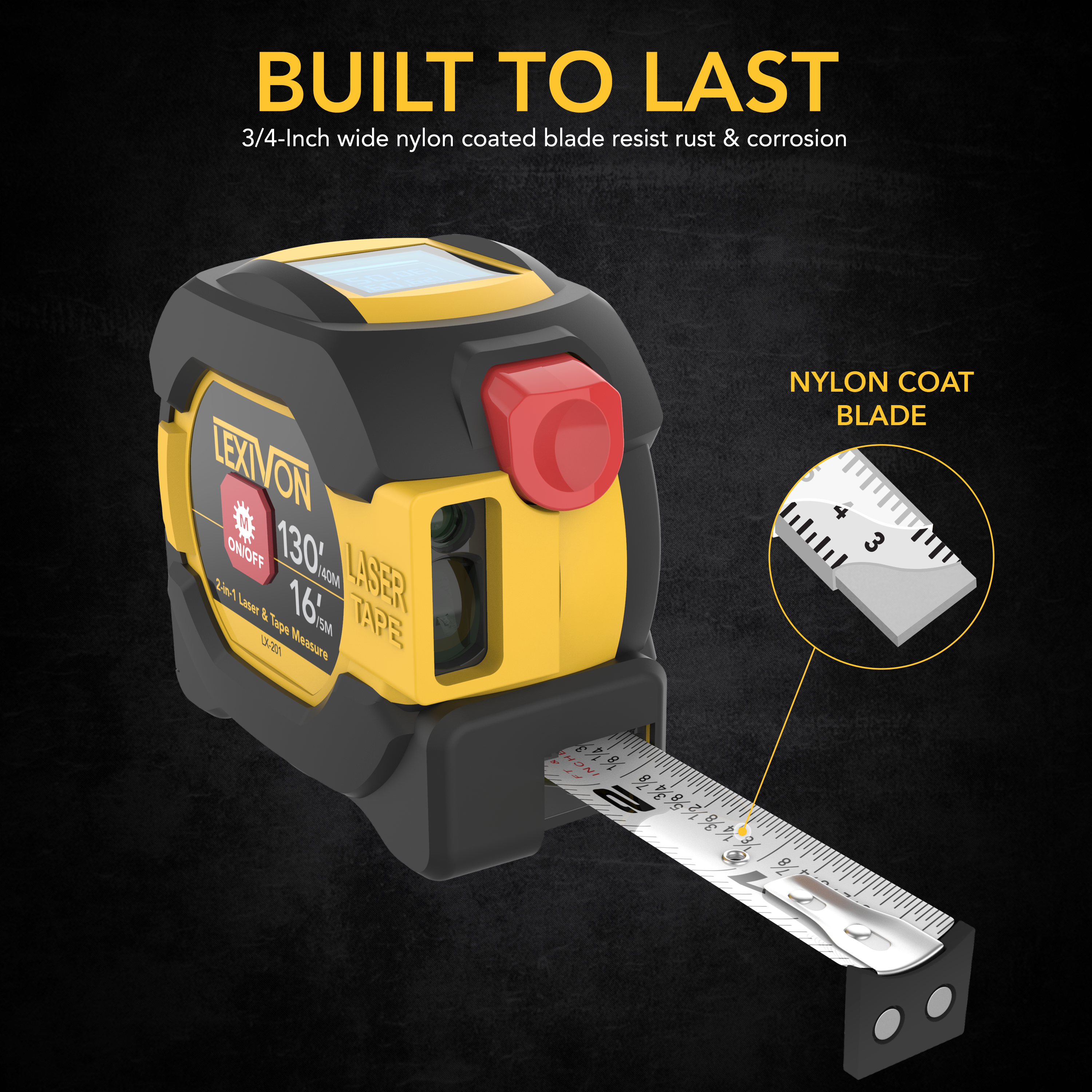

LX-201 housing detail showing the rear edge, LCD and AutoLock control
In the box

Tool, Batteries And Battery-Cover Screwdriver

One LX-201 laser and AutoLock tape measure, two AAA batteries and the battery-cover screwdriver.

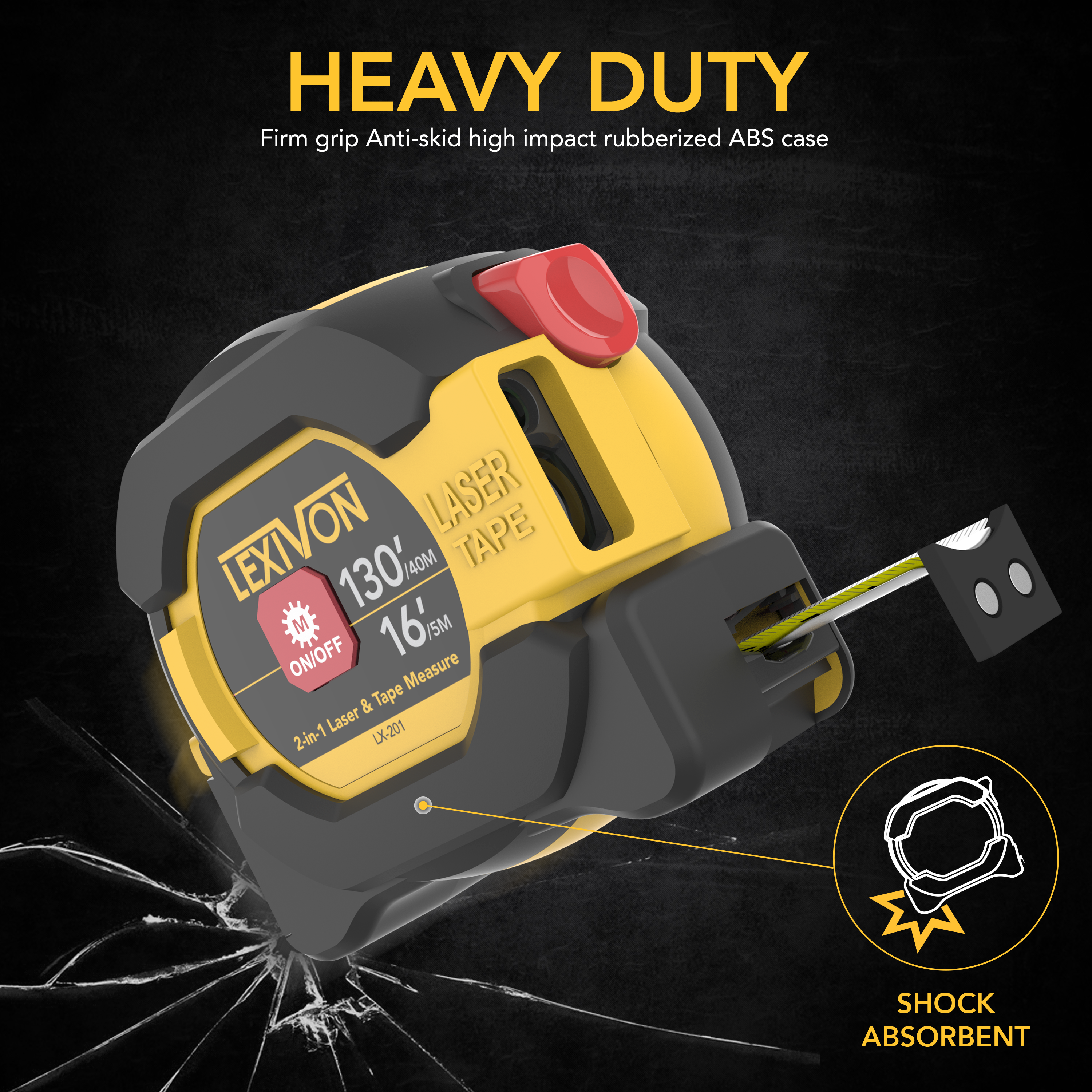

LX-201 laser and AutoLock tape measure with extended blade and hook

Will it suit the job?

Choose contact tape measurements for short spans and laser readings when a suitable target is available. Check the rear-case reference before measuring.

Job or requirementWorksWhat to check
Room and furniture distancesYes, within laser rangeUse a suitable target and the rear-case starting reference.
Short contact measurementsYesThe AutoLock tape is 16 ft / 5 m; control retraction with its button.
Magnetic hook attachmentYes, on suitable metalThe hook is magnetic; confirm secure contact.
Very close laser distancesOnly within rated rangeLaser minimum is 1 ft / 0.2 m as printed; use the tape for shorter spans.
Highly reflective or weak-return surfacesMay need another targetFollow weak- or strong-signal troubleshooting; full range is conditional.
Direct eye exposureNoClass 2 laser: do not stare into the beam.

Tech Specs

Laser range
1-130 ft / 0.2-40 m, manufacturer range
Laser accuracy claim
+/-1/16 inch / +/-1.5 mm
Mechanical tape range
16 ft / 5 m
Laser reference
Rear of case; case length is already included
LCD
Backlit; current and previous values
Laser measurement modes
Single and continuous distance
Laser class
Class 2; maximum output below 1 mW
Power
Two 1.5V AAA alkaline batteries
Tape control

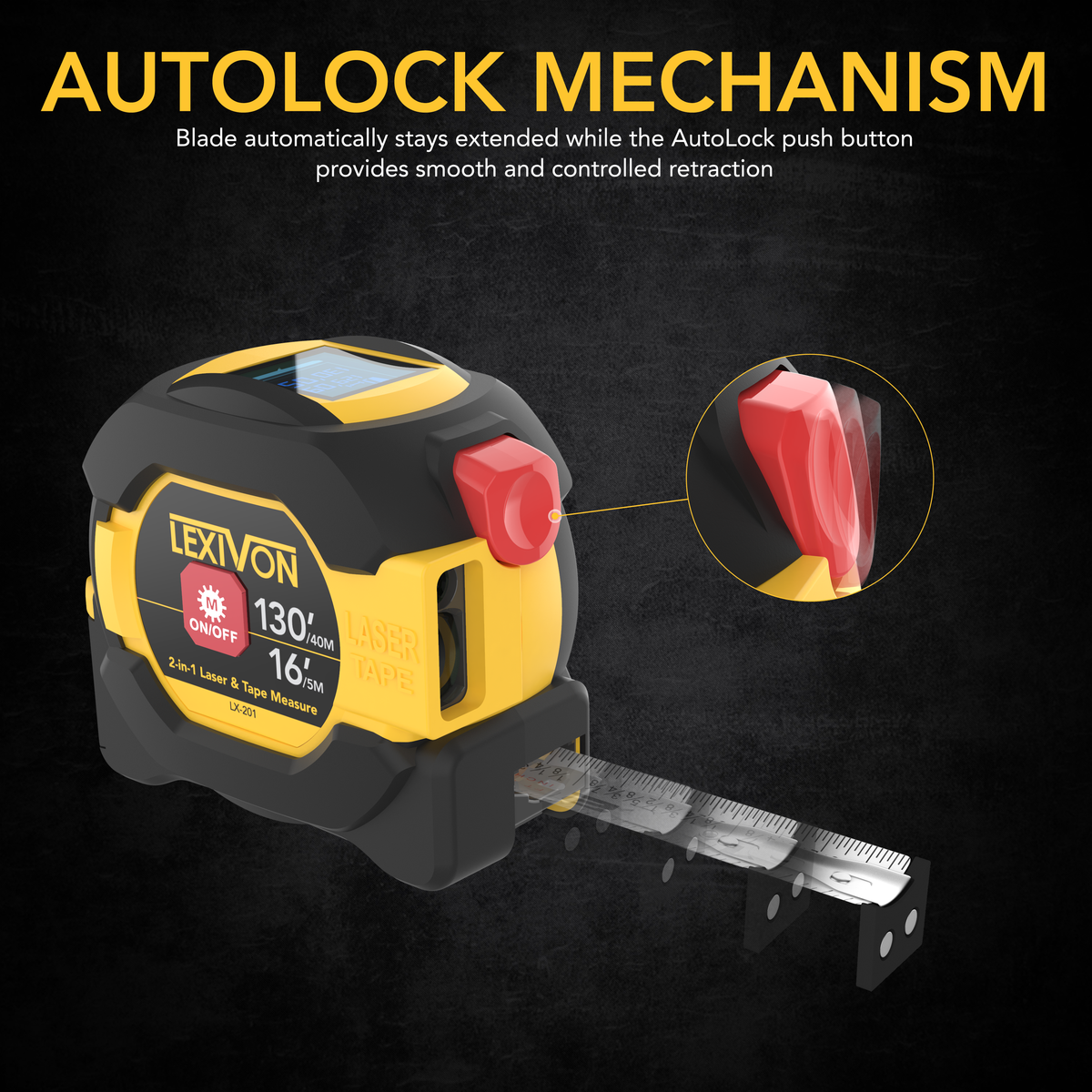

AutoLock hold; push-button retraction
Tape hook

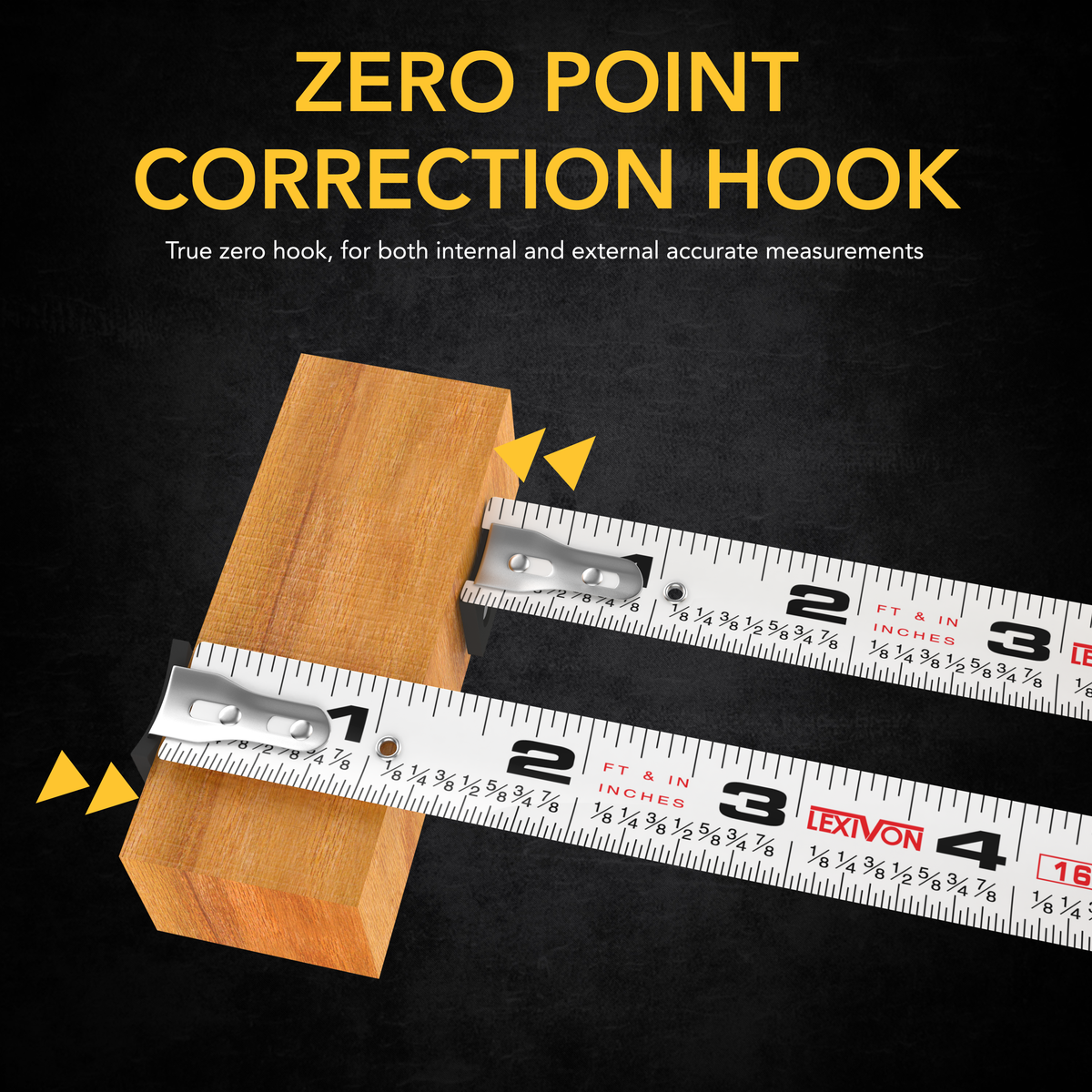

Magnetic, movable true-zero hook
In the box
One LX-201 laser and AutoLock tape measure, two AAA batteries and the battery-cover screwdriver.
Pack quantity
1
Warranty
12 months standard; 24 months when you register online within 90 days of purchase. Commercial: 12 months without extension; industrial excluded. Excludes normal wear and tear, misuse, modification and damage from non-original parts; coverage is not transferable.
Case length included in laser reference
Approximately 3 3/8 inches

Questions

Can I measure room distances without extending a blade?

Yes. The laser meter measures within its 1-130 ft / 0.2-40 m measuring range when a suitable target returns a signal.

Can I also use it as a regular tape measure?

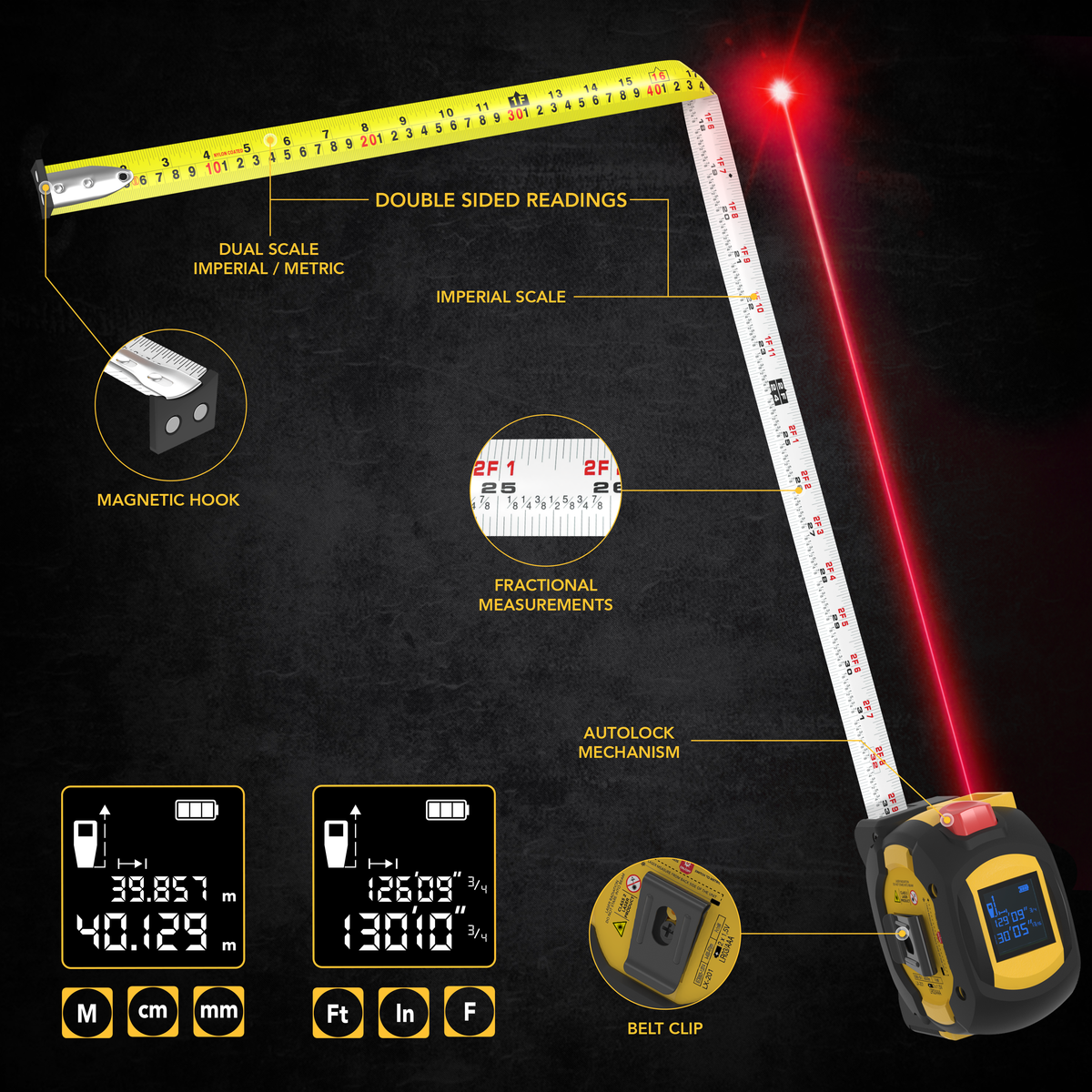

Yes. It includes a 16 ft / 5 m AutoLock blade with double-sided imperial and metric markings.

Will the laser work at 130 ft in every situation?

Full range is not guaranteed in every situation. Weak- and strong-signal errors depend on the target surface; select a suitable target.

Can I use the hook on metal?

Yes. The magnetic hook attaches to suitable metal surfaces; confirm contact before reading the tape.

Does the laser measure from the front or back?

The laser measures from the back of the case and already includes its approximately 3 3/8-inch length. Place the rear edge at your starting point. If you position the front edge there instead, subtract that case length from the displayed distance.

Can I switch between feet and metric?

Yes. Hold the measure button for about three seconds to convert feet and metric units; it also converts a captured reading.

How does LX-201 compare with LX-207?

LX-201 combines a 130 ft / 40 m laser meter with a 16 ft / 5 m AutoLock tape. LX-207 is a 16 ft / 5 m DuaLock mechanical tape with a sliding lock and bottom speed brake.

What comes in the box?

One LX-201 laser and AutoLock tape measure, two AAA batteries and the battery-cover screwdriver.
