LEXIVON Torque Wrench, 1/2-Inch Drive, Dual Scale 30–210 FT-LB (40.7–284.7 N·m), Premium Rubber-Grip Handle, Deluxe Hybrid Case (LX-TW12)

LEXIVON Torque Wrench, 1/2-Inch Drive, Dual Scale 30–210 FT-LB (40.7–284.7 N·m), Premium Rubber-Grip Handle, Deluxe Hybrid Case (LX-TW12)

Sale price  $114.97 Regular price  $133.97
Skip to product information
LEXIVON Torque Wrench, 1/2-Inch Drive, Dual Scale 30–210 FT-LB (40.7–284.7 N·m), Premium Rubber-Grip Handle, Deluxe Hybrid Case (LX-TW12)

LX-TW12

LEXIVON Torque Wrench, 1/2-Inch Drive, Dual Scale 30–210 FT-LB (40.7–284.7 N·m), Premium Rubber-Grip Handle, Deluxe Hybrid Case (LX-TW12)

Sale price  $114.97 Regular price  $133.97
UPC
840025271630

Overview

LX-TW12 is a rubber-grip 1/2-inch drive click torque wrench for wheel and workshop tightening from 30 to 210 ft-lb (40.7-284.7 Nm). It measures in either direction and uses a twisting collar to retain the setting; check clearance for its 19.4-inch length.

Key Advantages

Model Fit

Half-Inch Drive For 30-210 Ft-Lb Jobs

A 1/2-inch drive and 30-210 ft-lb range suit compatible wheel and workshop fasteners. Check torque, direction and space before selecting LX-TW12.

  • 1/2 inchsquare drive
  • 30-210 ft-lbrange
  • 24 teethratchet
LX-TW12 wrench, closed storage case and calibration certificate
Settings

Twist The Collar To Retain Your Setting

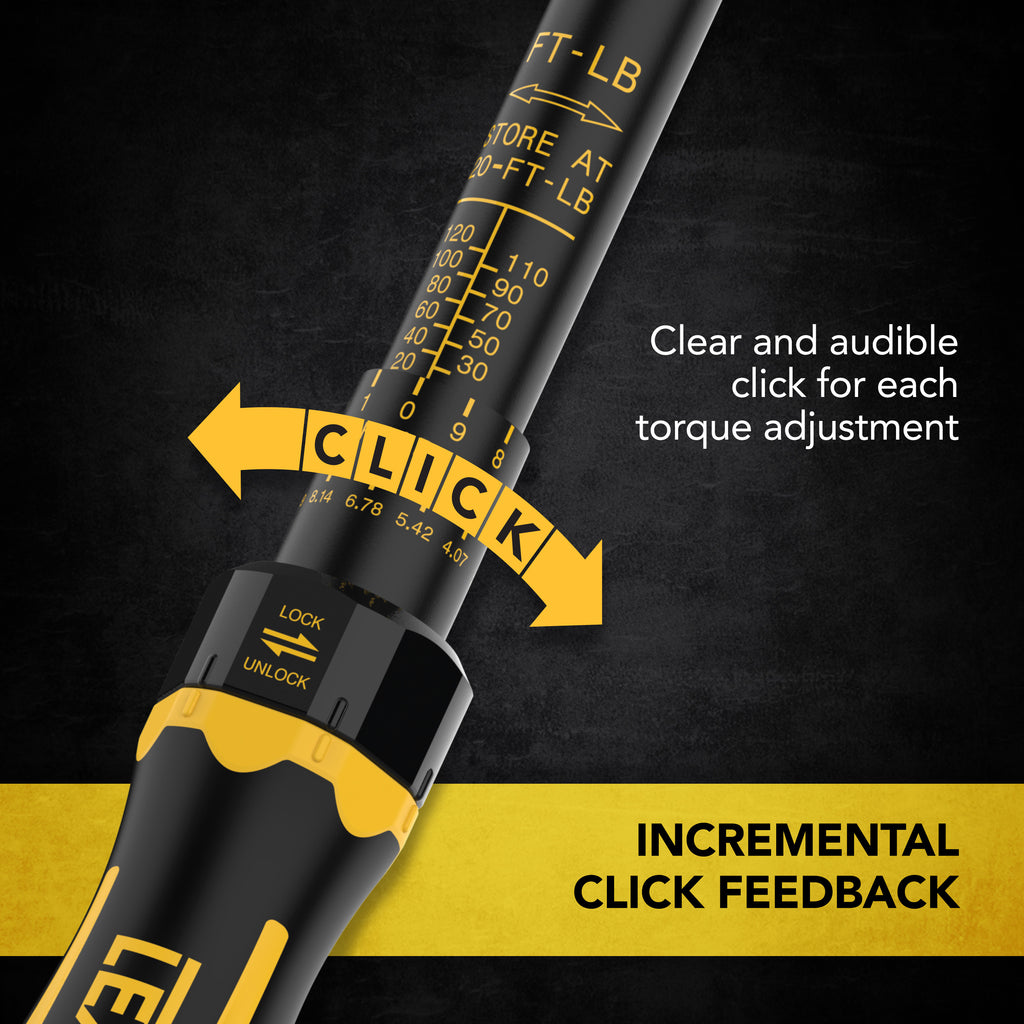

Read 1 ft-lb micrometer steps, turn the collar left to unlock and right to lock, and stop at the first torque impulse. The ratchet has 24 teeth.

LX-TW12 micrometer scale and twist locking collar
In The Box

Keep The Wrench And Paperwork Together

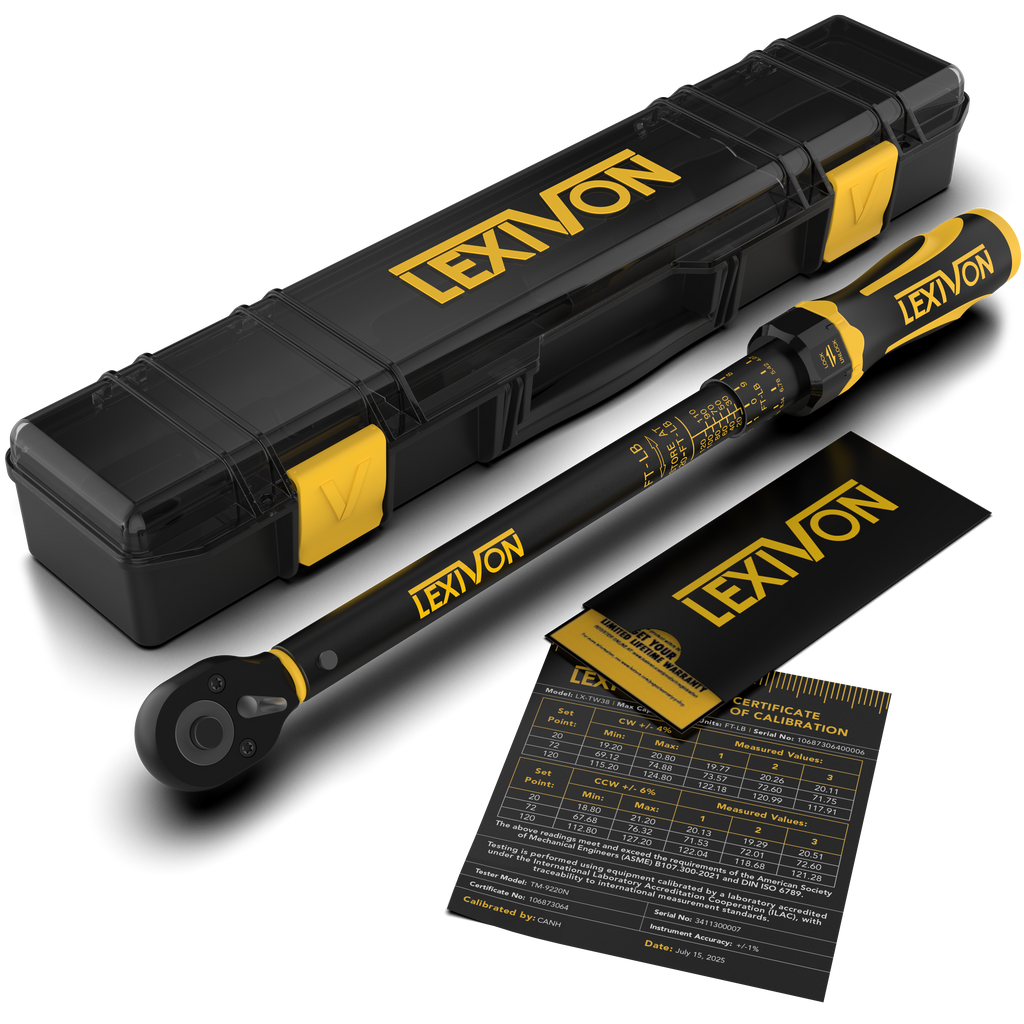

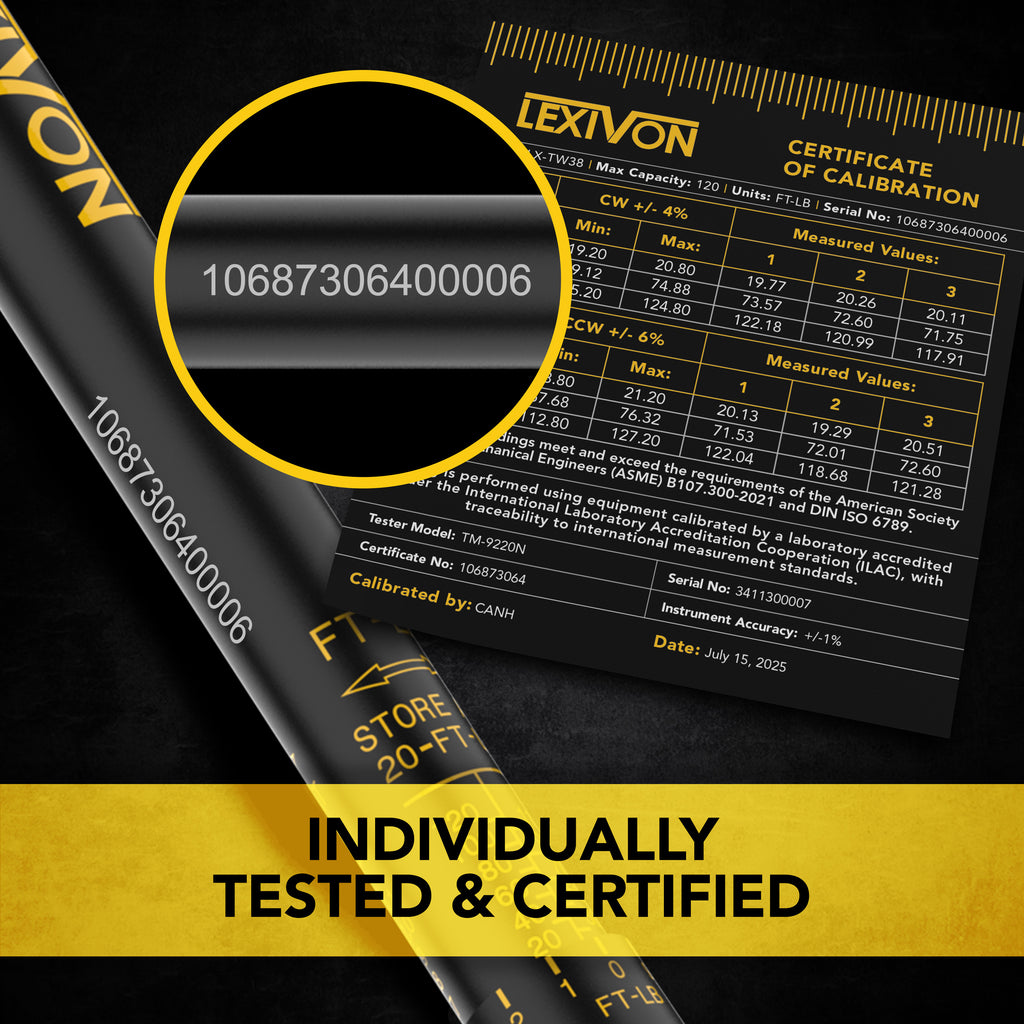

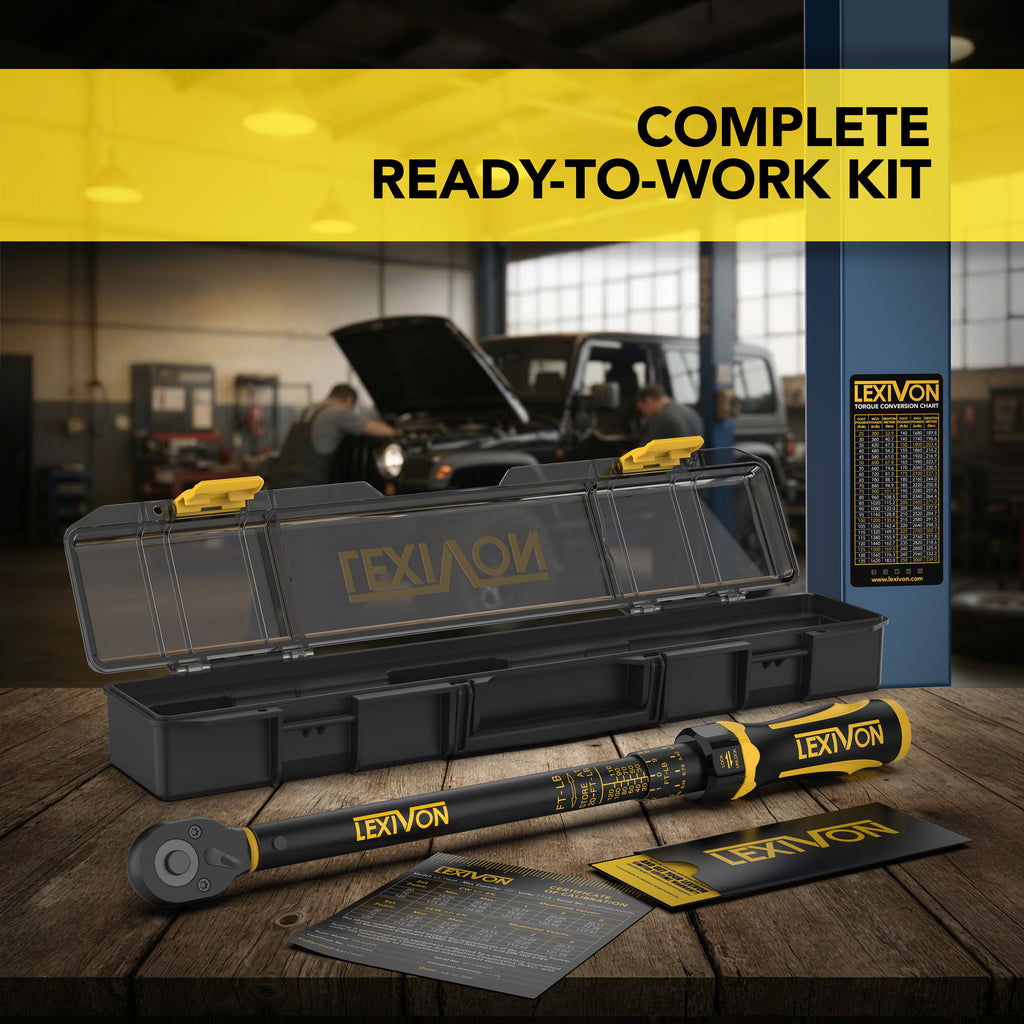

LX-TW12 includes the 1/2-inch drive wrench, storage case, operator manual and calibration certificate. Select a socket that fits your fastener separately.

LX-TW12 wrench, open case and calibration paperwork

Will it fit the job?

Match the required torque, measurement direction, square drive and working space to the equipment specification.

Job or attachmentWorksWhat to check
Wheel and workshop fasteners requiring 30-210 ft-lbYes, when specification fitsClockwise and counterclockwise tightening within 30-210 ft-lb; follow the equipment maker's torque value.
1/2-inch drive socketsYesMatch the socket opening to the fastener and allow space for the wrench.
3/8-inch drive socketsNo direct fitMatch the square drive rather than the socket opening size.
Fasteners below 30 ft-lbNoUse a lower-range torque tool.
Fasteners above 210 ft-lbNoUse a higher-range torque tool.
Left-hand threaded fastenersYes, within rangeCounterclockwise accuracy claim is +/-6%.
Stuck fasteners and added leverageNoDo not use as a breaker bar or add leverage devices.

Tech Specs

Square drive
1/2 inch
Torque range
30-210 ft-lb; 40.7-284.7 Nm

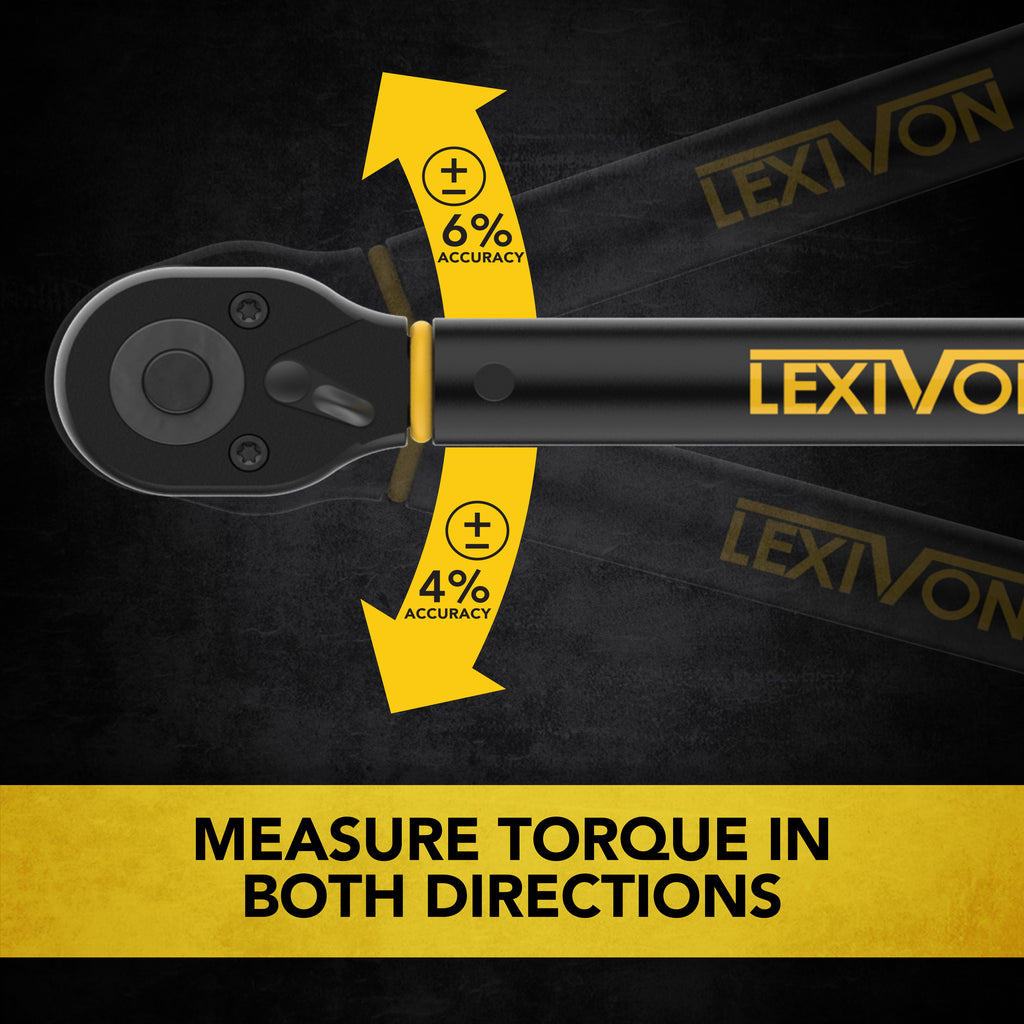

Measurement direction
Clockwise and counterclockwise
Accuracy claim
+/-4% clockwise; +/-6% counterclockwise; supplied pre-calibrated

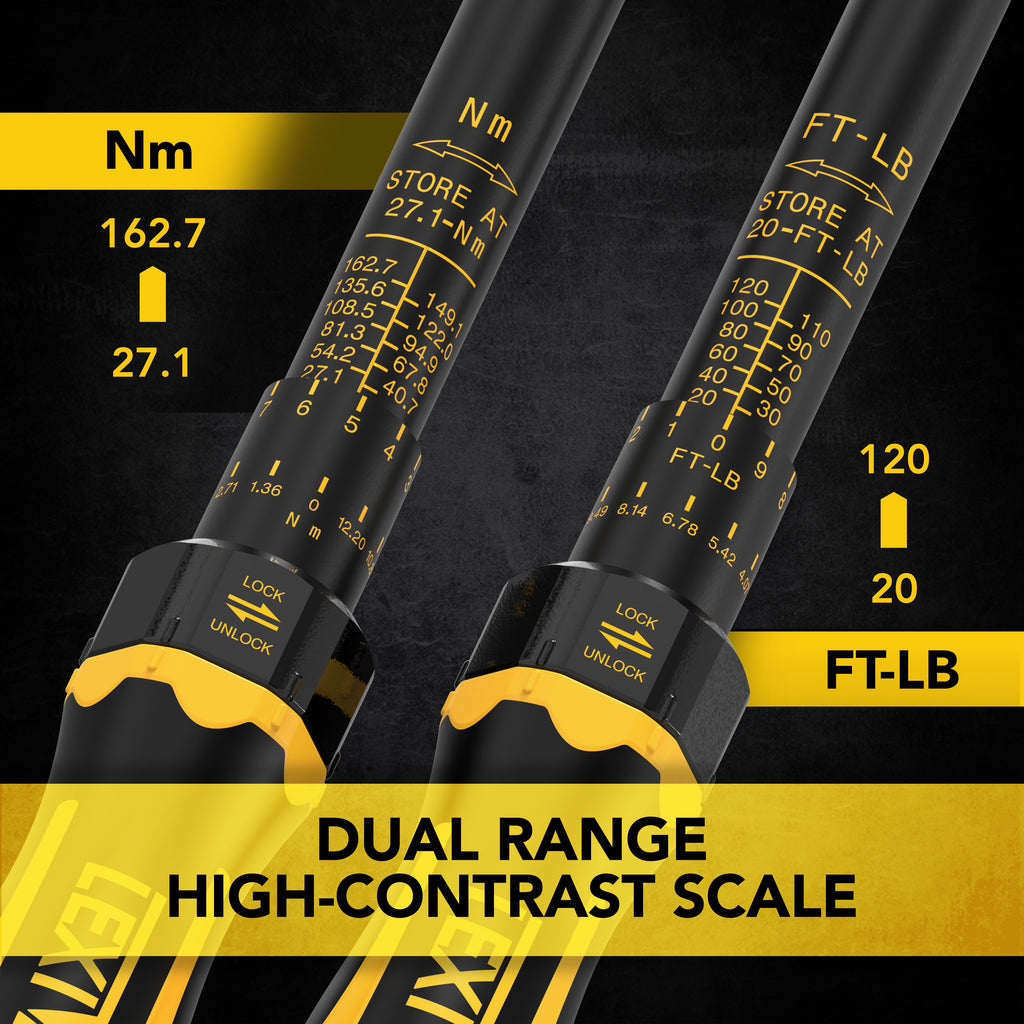

Micrometer increment
1 ft-lb (approximately 1.36 Nm)
Length
19.4 inches / 49.3 cm
Ratchet
Reversible; 24 teeth; quick-release button
Ratchet material
Chrome vanadium alloy steel
Finish
Electro-Black
Storage setting
30 ft-lb, never below minimum
Included items
Wrench, storage case, manual, calibration certificate
Warranty
Lifetime coverage when you register online within 90 days of purchase; 12 months standard without registration. Commercial: 12 months; industrial excluded; recalibration excluded.
Product weight
2.652161 lb
Country of origin
Taiwan
Grip diameter, widest section
39 mm (1.53 inches), nominal

Questions

Is this suitable for a 1/2-inch drive wheel socket?

LX-TW12 accepts a 1/2-inch square-drive socket directly. Wheel work also requires the vehicle maker's specified tightening torque to fall between 30 and 210 ft-lb, plus enough clearance for the 19.4-inch wrench.

Can it torque a left-hand wheel fastener?

LX-TW12 measures counterclockwise torque with a +/-6% accuracy claim, versus +/-4% clockwise. Follow the fastener maker's thread direction and torque specification within 30-210 ft-lb; a reversible socket alone does not determine the correct tightening direction.

Would this work for a 250 ft-lb requirement?

250 ft-lb is above LX-TW12's 210 ft-lb ceiling. A nominal 1/2-inch drive does not expand the rated torque range. Choose a measuring tool whose interval includes the required 250 ft-lb.

Is a 25 ft-lb setting available?

LX-TW12 begins at 30 ft-lb, so 25 ft-lb is outside its interval. Use a lower-range wrench for that fastener, even if the 1/2-inch socket fits both tools.

How long is the wrench in centimetres?

LX-TW12 is 19.4 inches (49.3 cm) long. The grip measures 39 mm (1.53 inches) across its widest section. Allow room for your socket and hand movement; these nominal dimensions are not manufacturing tolerances.

Can I use it with 3/8-inch drive sockets?

A 3/8-inch square-drive socket will not attach directly to the LX-TW12 1/2-inch square drive. Choose a correct drive interface and fastener opening; any adapter arrangement must follow its own instructions and the equipment procedure.

Are the large markings in ft-lb or in-lb?

LX-TW12 is a foot-pound and Nm tool: 30-210 ft-lb or 40.7-284.7 Nm. It is not the inch-pound LX-TW14. Confirm the unit on the equipment specification before combining the main and micrometer readings.

How does this compare with LX-TW38 for workshop sockets?

LX-TW12 uses 1/2-inch drive and spans 30-210 ft-lb; LX-TW38 uses 3/8-inch drive and spans 20-120 ft-lb. Both document measurement in both directions. Select the drive, torque limits and physical clearance for the job, rather than choosing only by case appearance.

Manuals & downloads

Download the documents for LX-TW12. Browse all manuals
